Button-fix Type 1 Metal

For demanding applications where performance cannot be compromised

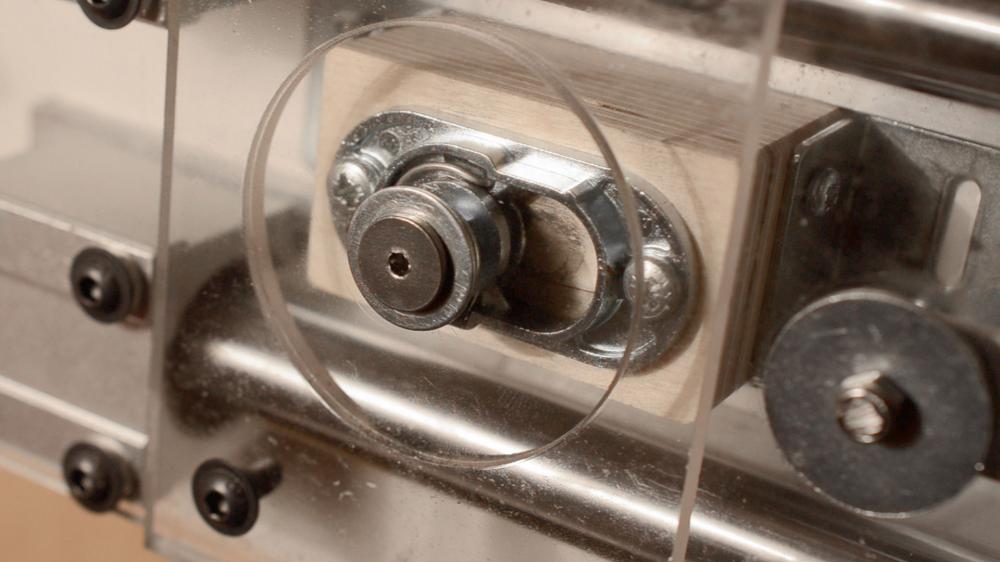

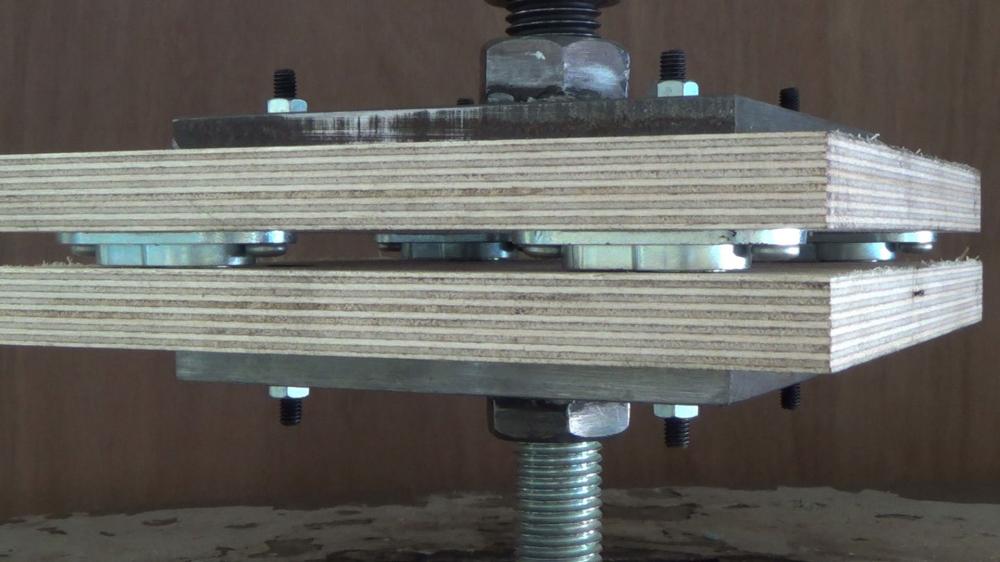

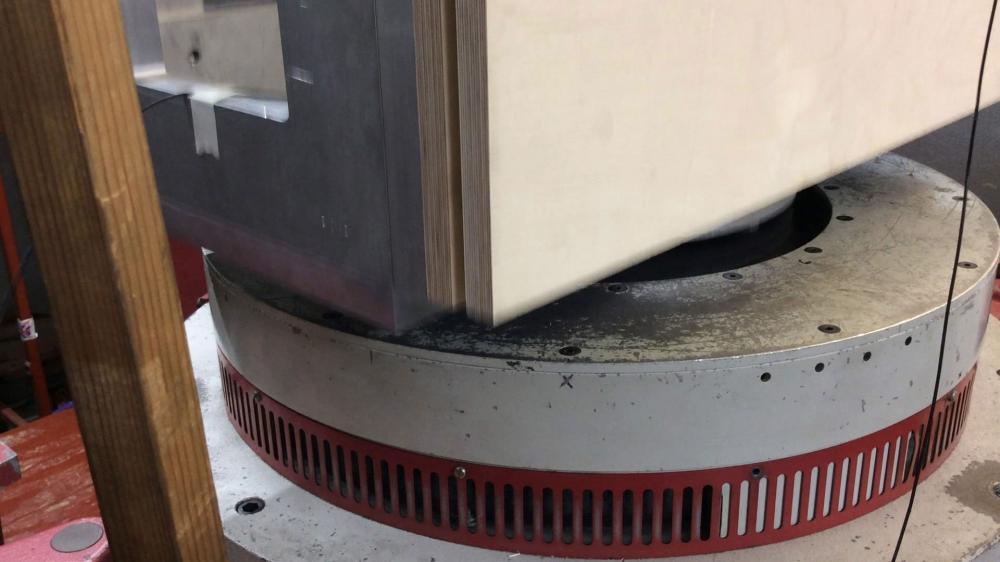

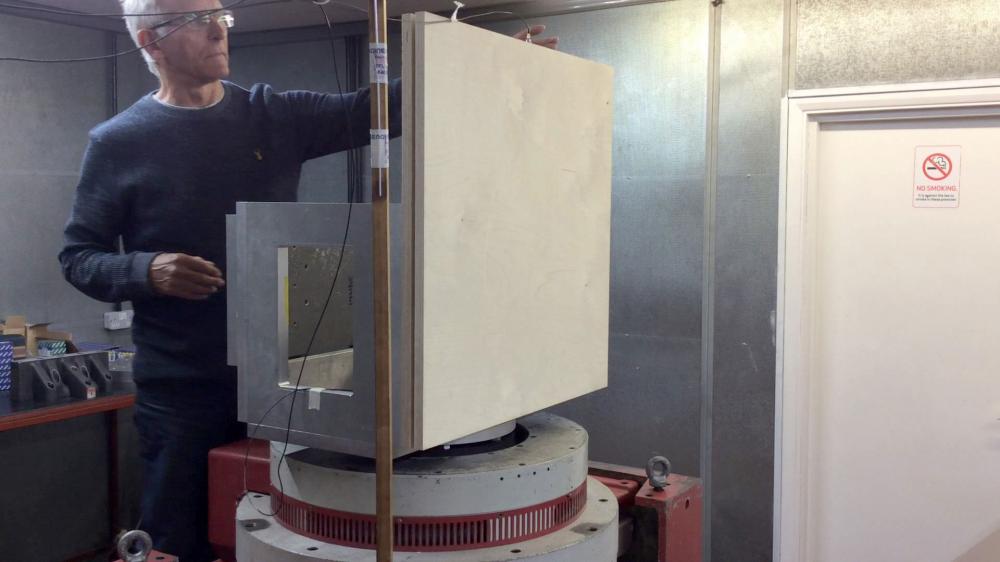

Ideal for use with fire-retardant panels, the Type 1 Metal is a versatile, high-performance fastener. Its reliability has been independently proven through rigorous strength, shock loading and vibration tests.

Both parts of the connector are diecast in ZL2 zinc alloy and fitted with a 316 stainless-steel spring. As a general guide, four Button-fix Type 1 Metal fasteners on a vertical panel will support loads weighing up to a maximum of 770lbs (350kg), provided that the screws and substrate are properly matched and all other installation instructions are complied with. Manufactured in the UK.

Do you have a technical question about Button-fix?

Please email our technical team and we'll be happy to help:

Using

Button-fix Type 1 Metal

In demanding applications where proven performance is required, Button-fix Type 1 Metal is the one to use.

Typical uses include:

  • Fire-retardant panels
  • Environments where fire smoke toxicity is a concern
  • Maritime and other transport interiors
  • Applications subject to vibration or shock loading
  • Panels that are repeatedly removed

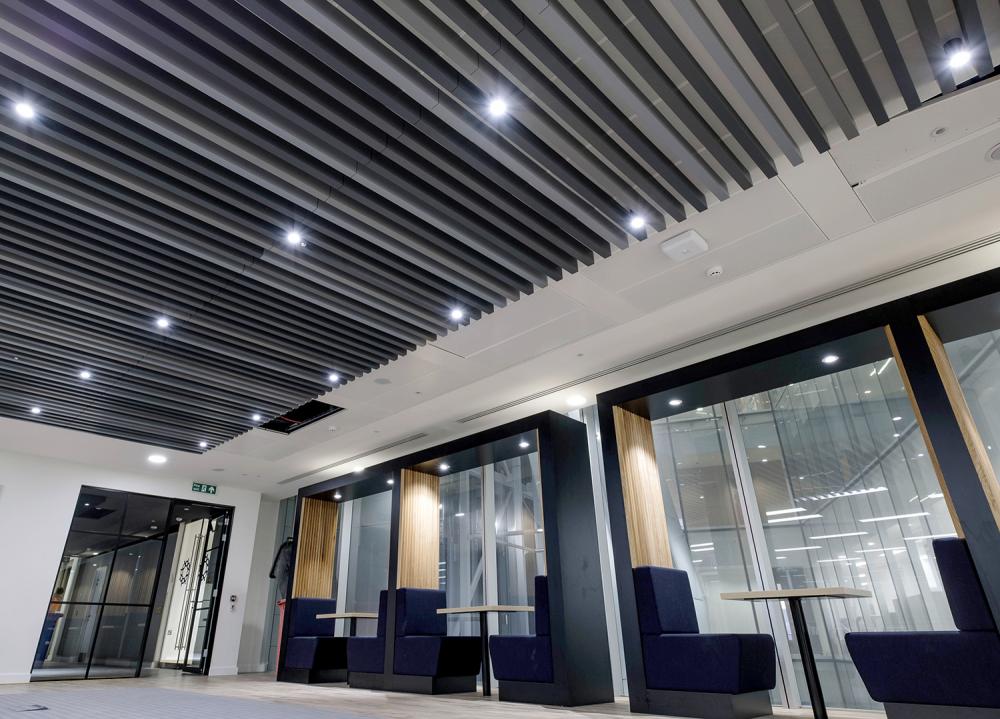

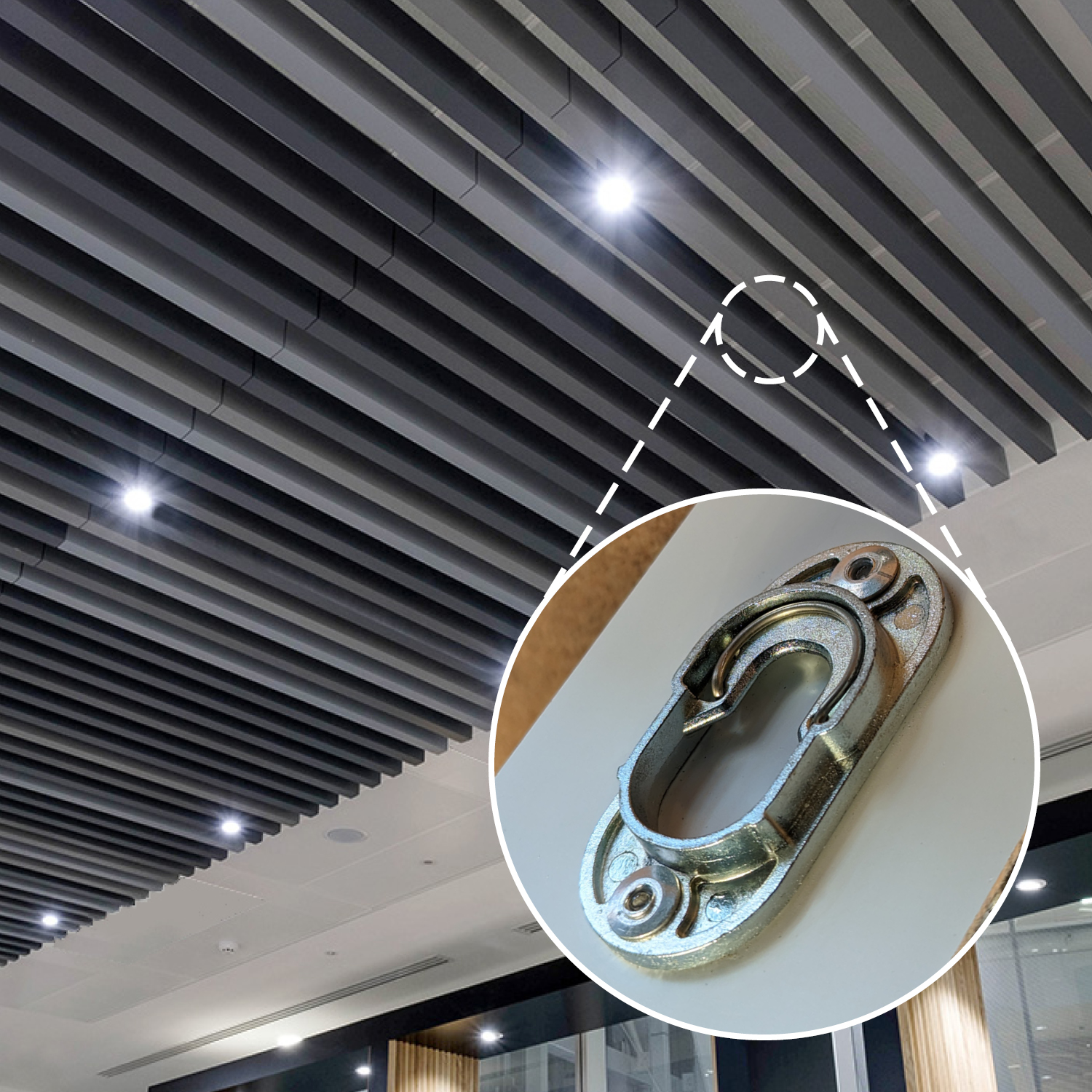

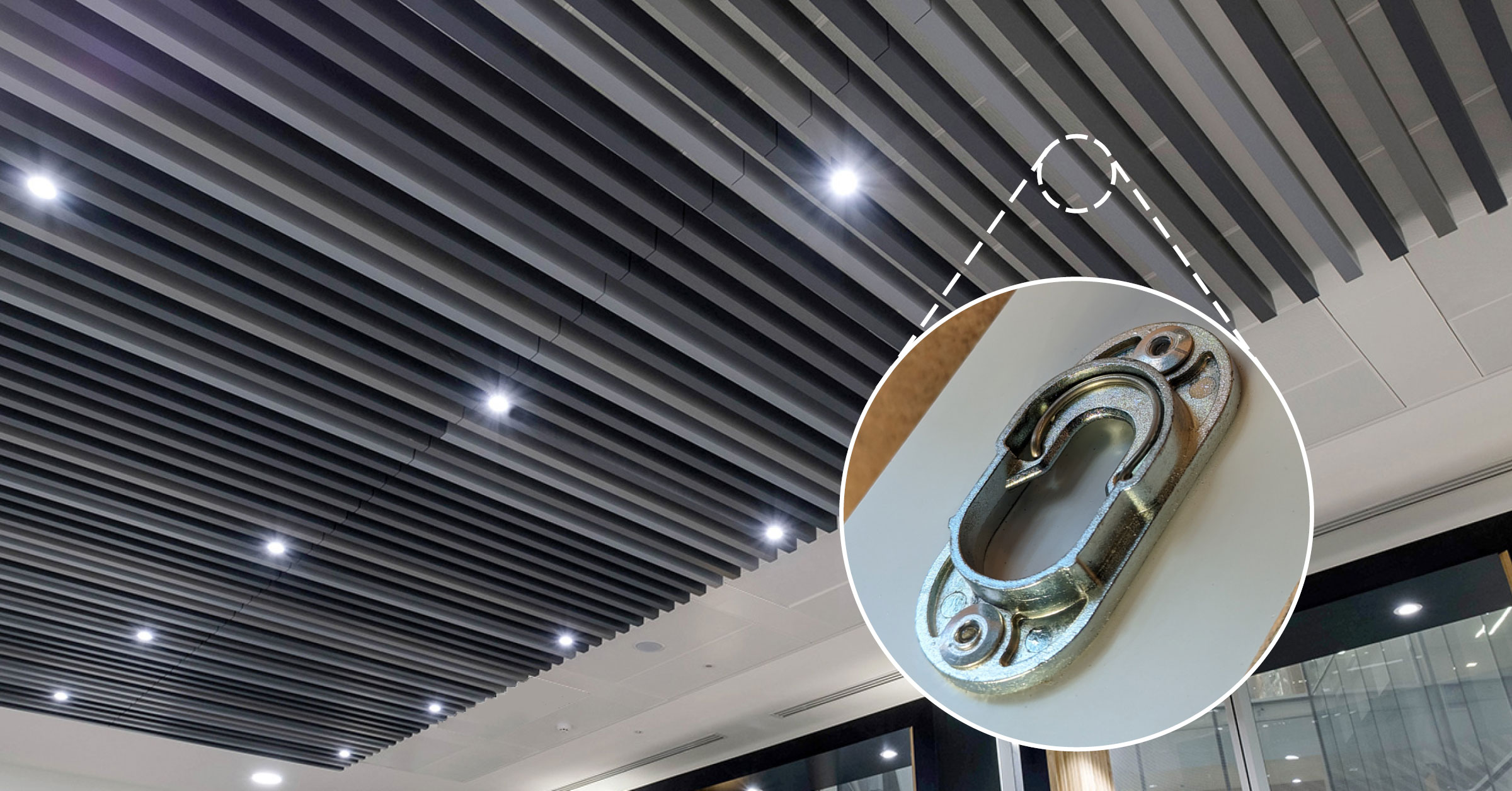

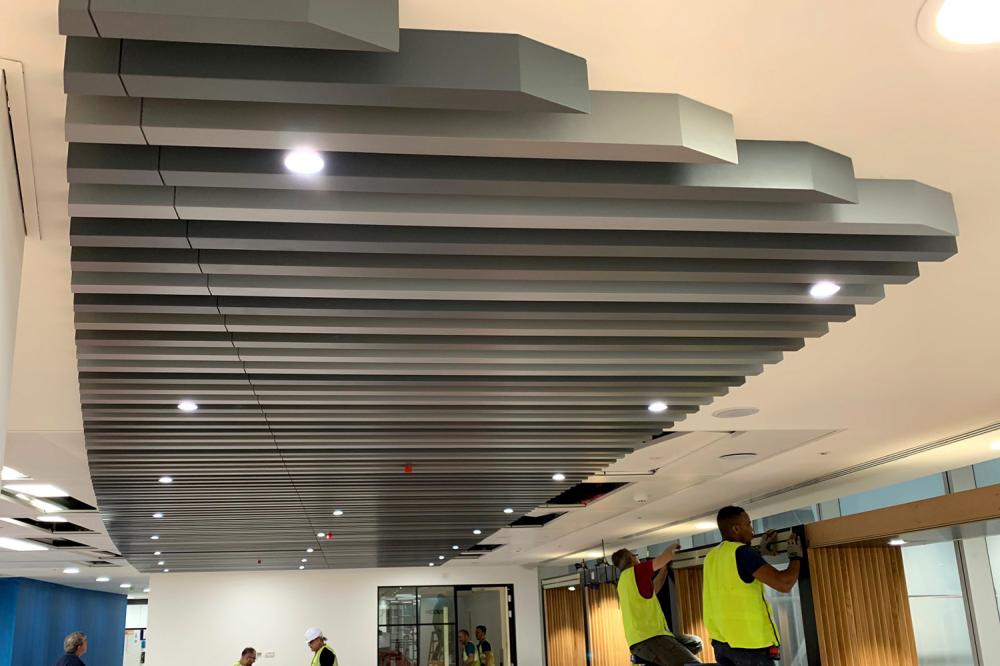

Acoustic ceiling planks
Fire retardant panels
Maritime applications
Camper van / RV applications
No items found.

Instructions for

Button-fix Type 1 Metal

No items found.

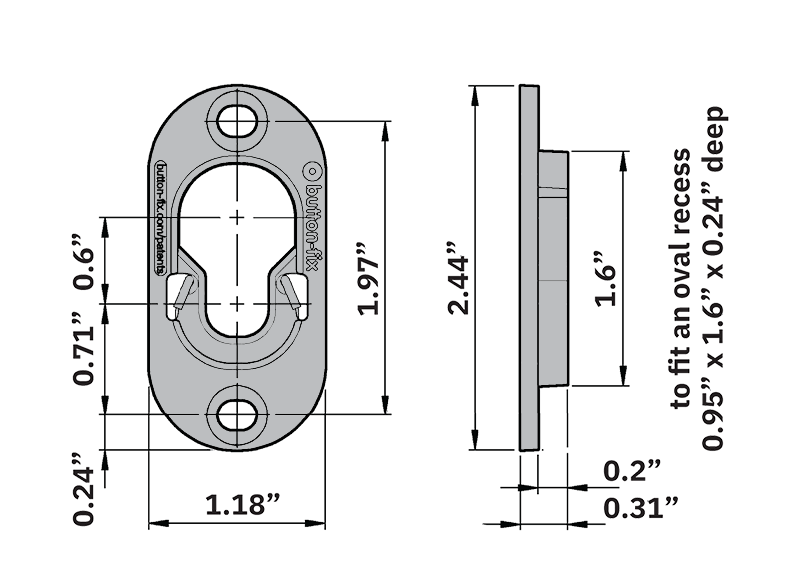

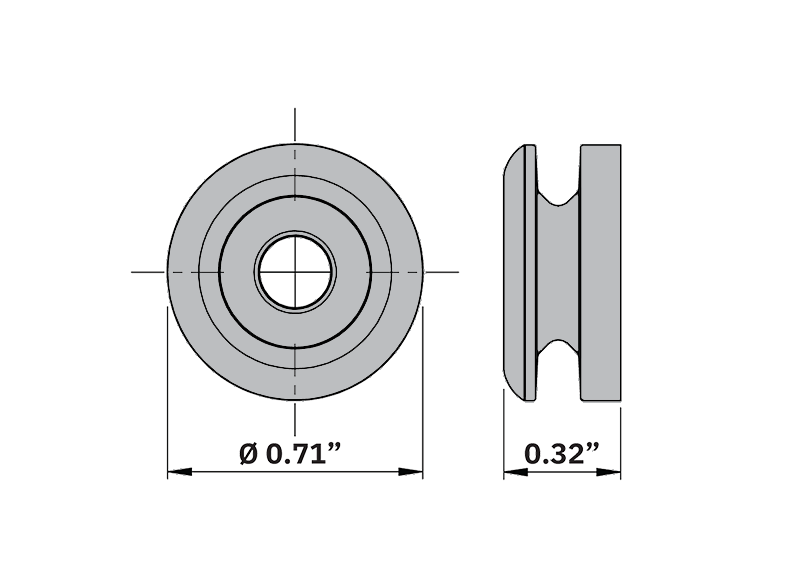

The Type 1 Metal Fix can be surface-mounted, creating a 0.31" gap between the panels, or semi-recessed to reduce the gap to 0.12". Engage the Buttons in the Fix and slide the panel down by 0.6", until Button-fix goes 'click'. The Type 1 Metal Button-fix can be configured for sideways assembly too.

Accessories for

Button-fix Type 1 Metal

Button Marker for Type 1 & Type 3

The Button Marker for both Type 1 and Type 3 helps to quickly and accurately align the Button-fix installation, reducing the need for measuring and marking out.

Snap a marker into each Fix, then position the second panel and press firmly. The marker points will leave indents in the panel surface, which can be used as pilot guides for the Buttons.

Button Marker for Type 1 & Type 3

Router Multijig for Type 1

The Multijig helps when machining the oval recesses required for rebated configurations of Button-fix.

The Multijig frame is clear acrylic, so that you can see the workpiece below, and has printed guide marks. It has three clearly labelled apertures dimensioned to suit the Type 1, Type 1 Flush, Type 1 Bonded and Type 1 Metal Fixes.

Router Multijig for Type 1

Button-fix product selector and features guide

Button-fix Type 1 Button-fix Type 1 Flush Button-fix Type 1 Bonded Button-fix Type 1 Metal Button-fix Type 2 Button-fix Type 3
Features of the Fix Type 1 Type 1 Flush Type 1 Bonded Type 1 Metal Type 2 Type 3
Material Nylon PA6 Nylon PA6 ABS Zinc alloy Nylon PA66 PBT
Connects face-to-face
Connects at 90°
Drop down or sideways engagement
Push-on engagement
For use on fire-retardant panels
Surface-mounted
Semi-rebated/recessed
Fully rebated/recessed
Attached with screws
Bonded
Minimum panel thickness 10mm (1) 18mm (2) No restriction 10mm (1) 10mm (1) 10mm
Marker accessories (available separately)
Router multijig (available separately)

Files available for download relating to

Button-fix Type 1 Metal

Files available in
STEP
,
DXF
,
STL
,
and
2d CAD Block
formats.
