Button-fix Type 3

Our new push-on/pull-off mount for wall and ceiling panels

Simply connects parallel panels, including panels with no clearance at the side. It can be surface-mounted or semi-recessed into the panel and its installation depth matches the Type 1 Button-fix, allowing the two fasteners to be used to hang adjacent panels.

The Fix housing is moulded from PBT and the Button is acetal - both strong and durable engineering polymers. As a general guide, four Button-fix Type 3 fasteners on a vertical panel will support loads weighing up to a maximum of 132 lbs (60kg), provided that the screws and substrate are properly matched and all other installation instructions are complied with. Four Type 3 Button-fixes can also support a ceiling panel of up to 22 lbs (10kg). Manufactured in the UK.

Do you have a technical question about Button-fix?

Please email our technical team and we'll be happy to help:

Using

Button-fix Type 3

Many applications of Type 3 are the same as the versatile Type 1 Button-fix, but where a push-on/pull-off engagement is required. Type 3 Button-fix is ideal for:

  • Wall and lightweight ceiling panels
  • Boat interiors with irregular-shaped panels
  • Acoustic panels including acoustic felt panels
  • Upholstered panels, bed headboards and banquette seating
  • Panels at the end-of-run or in tight corners on a Button-fix Type 1 installation, where sliding engagement is not possible

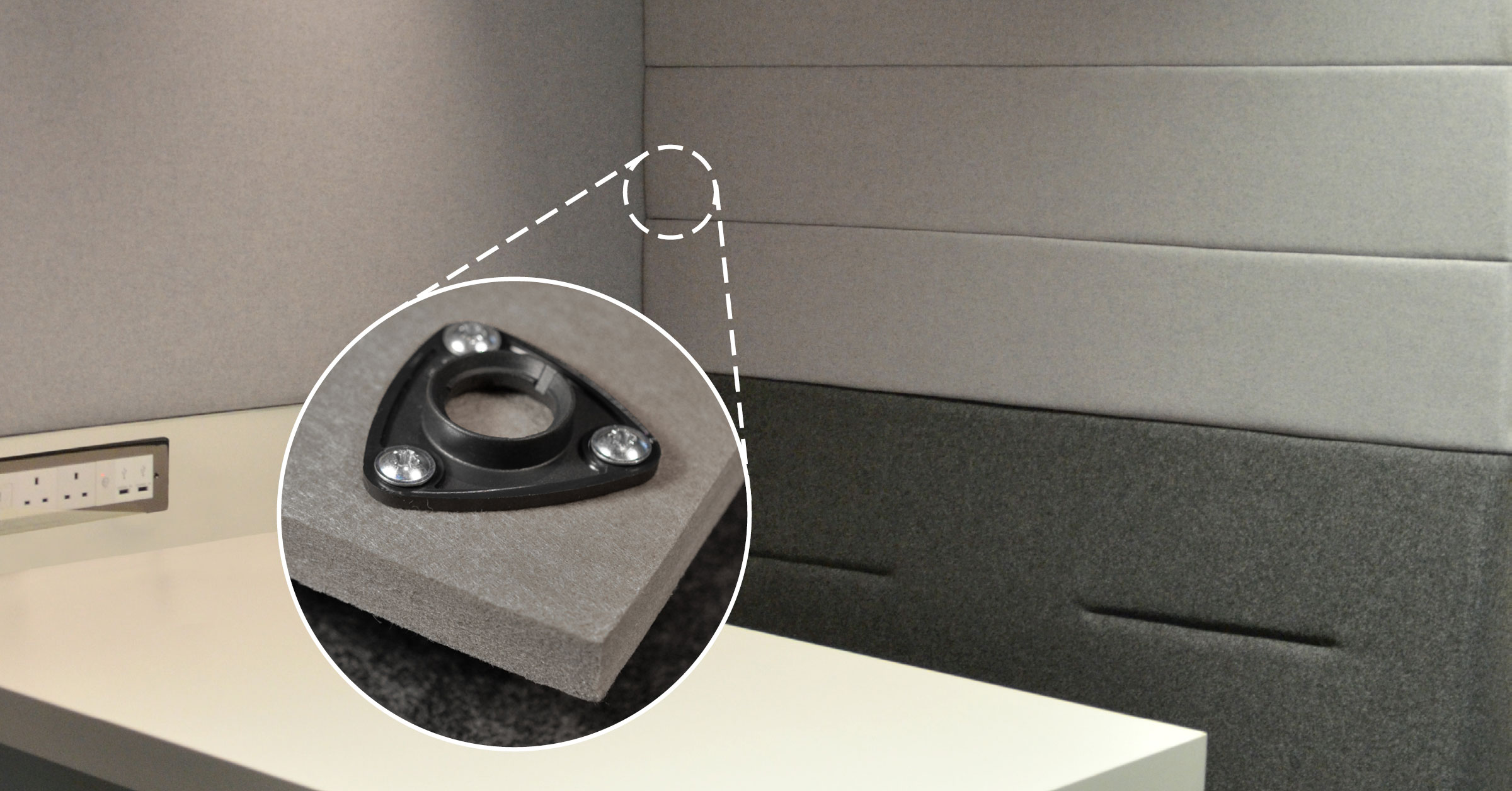

Type 3 application - wall & ceiling panels
Type 3 application - easily removable panels
Type 3 application - marine fit-out
Type 3 application - acoustic felt panels
No items found.

Instructions for

Button-fix Type 3

No items found.

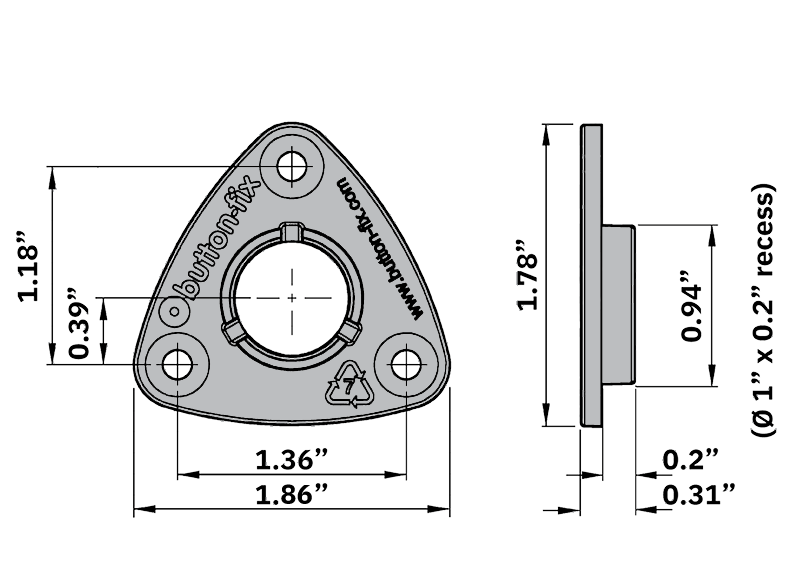

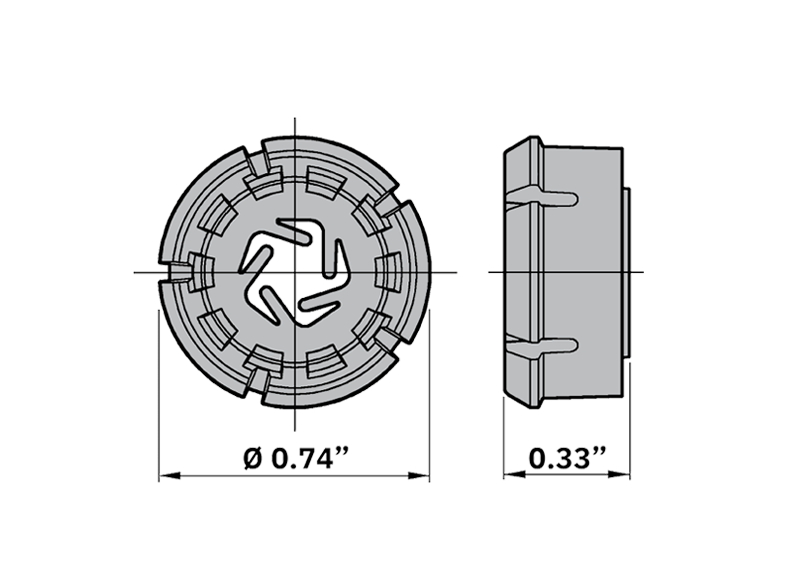

The Type 3 Fix can be surface-mounted, creating a 0.31" gap between the panels, or semi-recessed to reduce the gap to 0.12". Align the Buttons with the Fixes and press firmly until each Button-fix goes 'click'. No clearance at the sides of the panel is required for assembly or removal.

Accessories for

Button-fix Type 3

Button Marker for Type 1 & Type 3

The Button Marker for both Type 1 and Type 3 helps to quickly and accurately align the Button-fix installation, reducing the need for measuring and marking out.

Snap a marker into each Fix, then position the second panel and press firmly. The marker points will leave indents in the panel surface, which can be used as pilot guides for the Buttons.

Button Marker for Type 1 & Type 3

Button-fix product selector and features guide

Button-fix Type 1 Button-fix Type 1 Flush Button-fix Type 1 Bonded Button-fix Type 1 Metal Button-fix Type 2 Button-fix Type 3
Features of the Fix Type 1 Type 1 Flush Type 1 Bonded Type 1 Metal Type 2 Type 3
Material Nylon PA6 Nylon PA6 ABS Zinc alloy Nylon PA66 PBT
Connects face-to-face
Connects at 90°
Drop down or sideways engagement
Push-on engagement
For use on fire-retardant panels
Surface-mounted
Semi-rebated/recessed
Fully rebated/recessed
Attached with screws
Bonded
Minimum panel thickness 10mm (1) 18mm (2) No restriction 10mm (1) 10mm (1) 10mm
Marker accessories (available separately)
Router multijig (available separately)

Files available for download relating to

Button-fix Type 3

Files available in
STEP
,
DXF
,
STL
,
and
2d CAD Block
formats.

Please fill in your details to download the CAD files. Fields marked with a * are required.

Oops! Something went wrong while submitting the form.

Projects using

Button-fix Type 3

Other Button-fix products

Button-fix Type 2

  • Connects panels at 90° or to a frame
  • Push-on engagement
  • Ideal for service access such as bath panels
View Product Information

Button-fix Type 1 Metal

  • For use on fire-retardant panels
  • Drop down or sideways engagement
  • Ideal for marine and other transport interiors
View Product Information

Button-fix Type 1 Bonded

  • For bonding to panels of any thickness
  • Drop down or sideways engagement
  • Ideal for signage and exhibition displays
View Product Information
