Its 90° connection and straight push-on engagement make the Type 2 Button-fix the recommended choice for access panels and boxing-in services.
With the Fix Marker accessory, it is quick and easy to install with no need for a tape measure.
The blue Button attaches to the side of a cabinet carcass or a timber stud frame, and the Fix bracket to the back of the removable panel. Type 2 is ideal for any application where access is occasionally required to concealed plumbing or electrics, or for servicing built-in appliances. No clearance is required above or at the side of the removable panel, and the tapered Button is specially designed to guide the Fix into the correct alignment.
.png)
When service access to plumbing or electrical wiring is a priority, Button-fix Type 2 is an ideal choice.
Typical uses include:
Wall panel with 4 x Fixes, guide load = 60 kg max.
Never use Type 2 on ceiling panels.
- Advice on panel loads is given with the proviso that the screws and substrate are properly matched, and all other instructions complied with. For critical applications it is essential to perform your own tests.
- Disengagement force for a single Type 2 Fix is approximately 7 kg
Full documentation for the product can be downloaded in this section, including detailed instructions for use (in multiple languages), a declaration of performance certificate, independent load test reports and safety warnings. You can also download CAD models of the fastener below.
Documentation for all our products can also be found on the technical resources page.
Files for all of our fixtures are available in STEP, DXF and STL file formats.
Please fill in your details to download the CAD files. Fields marked with a * are required.

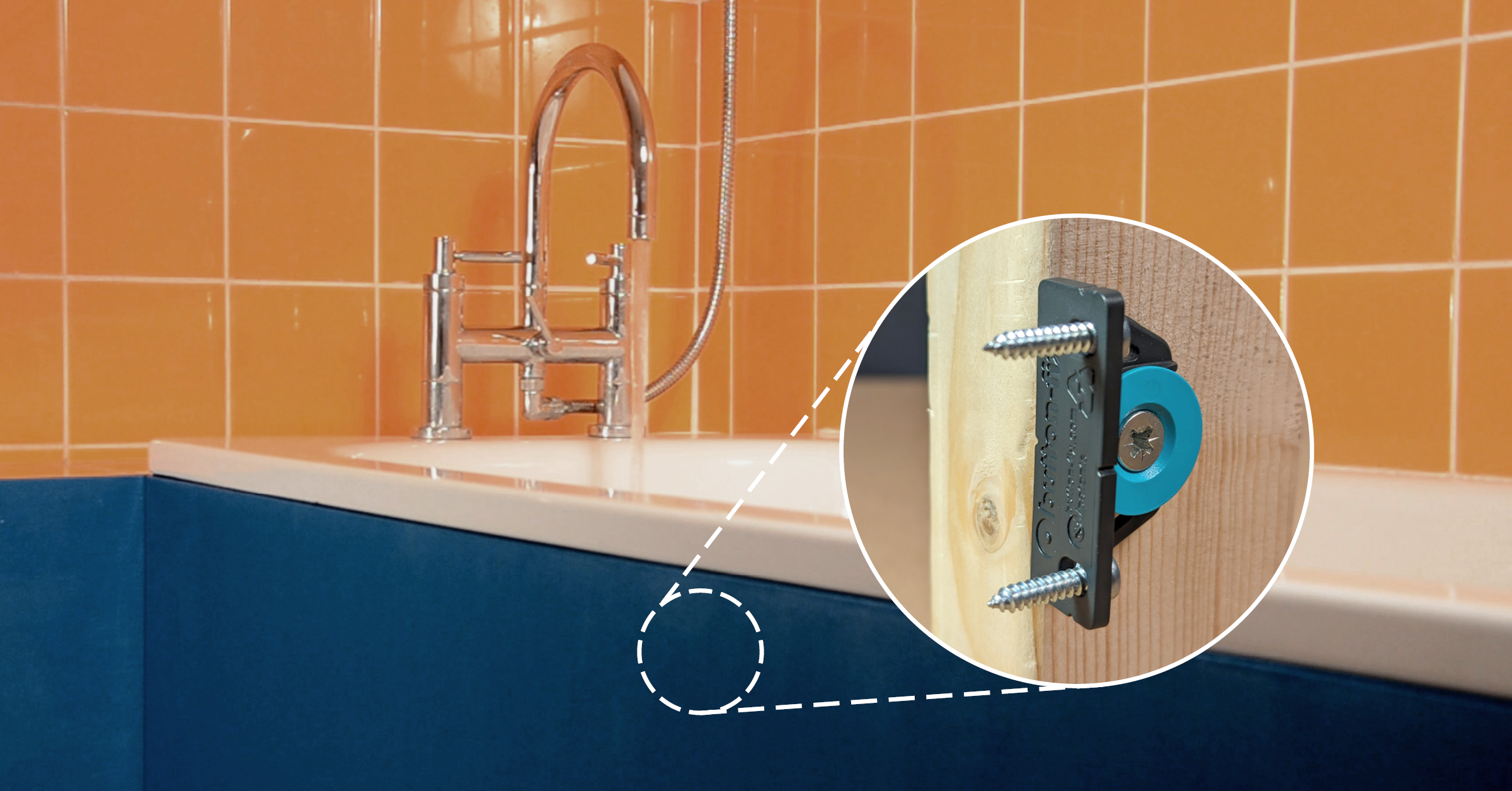

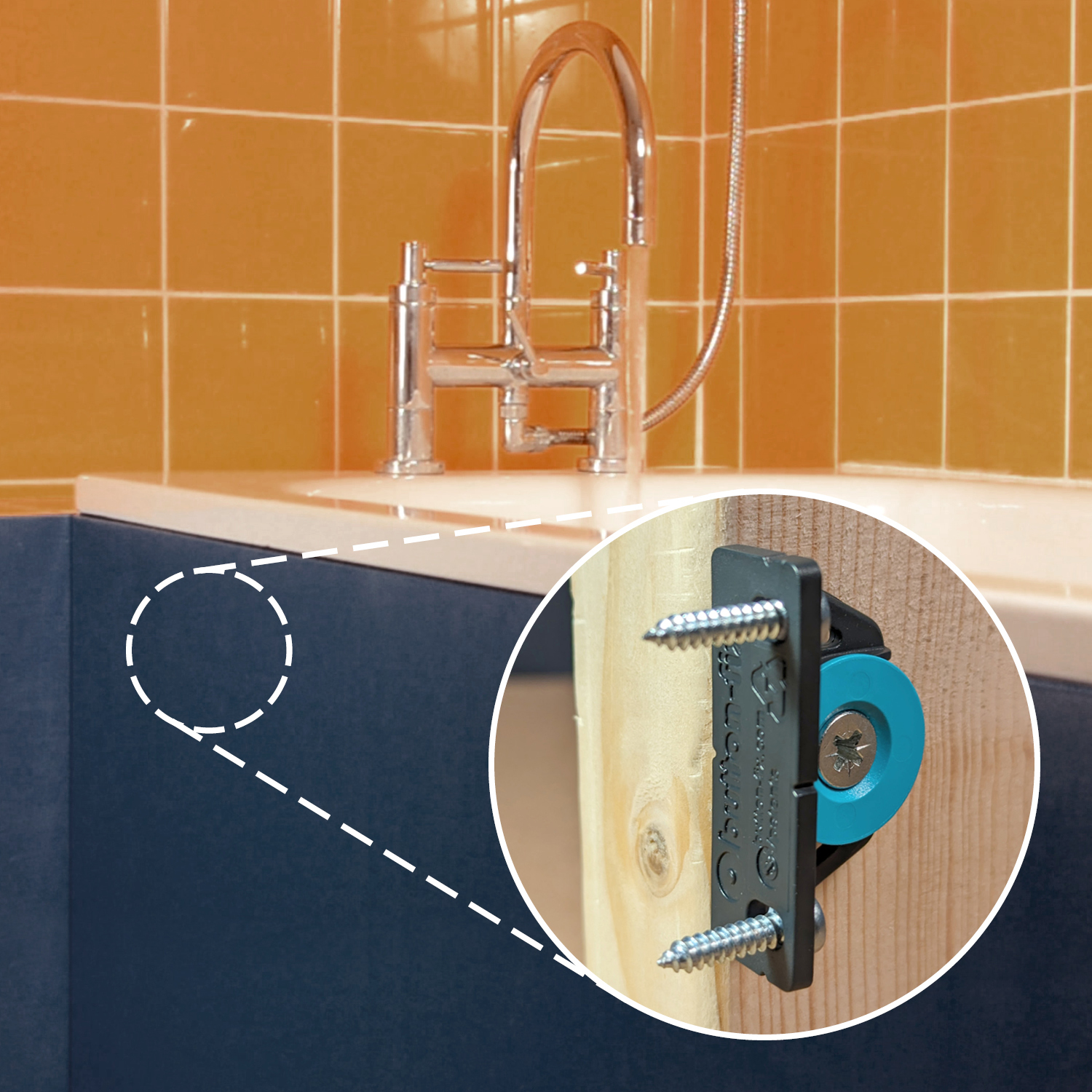

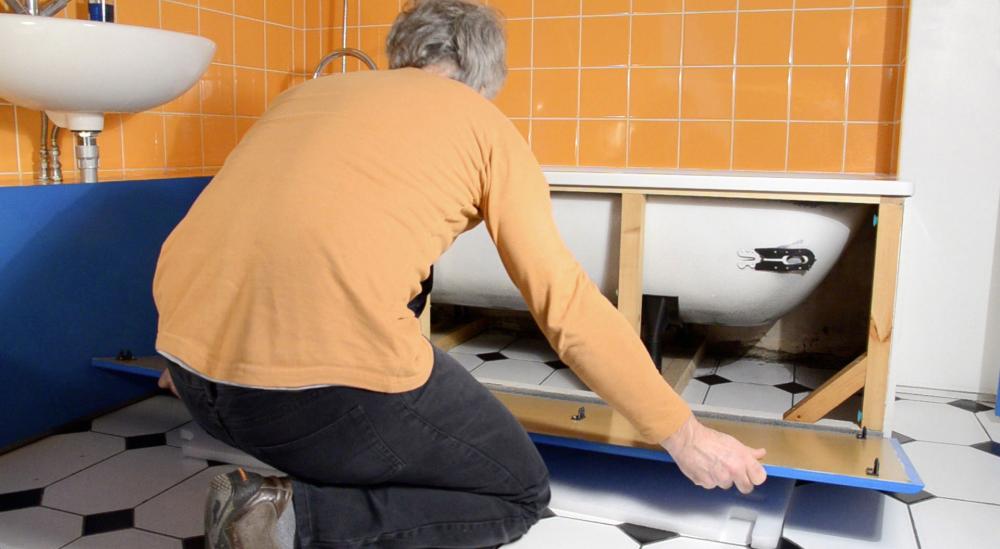

Fitting a removable bath panel. Watch our video of the installation
Fitting a removable bath panel. Watch our video of the installation
Fitting a removable bath panel. Watch our video of the installation

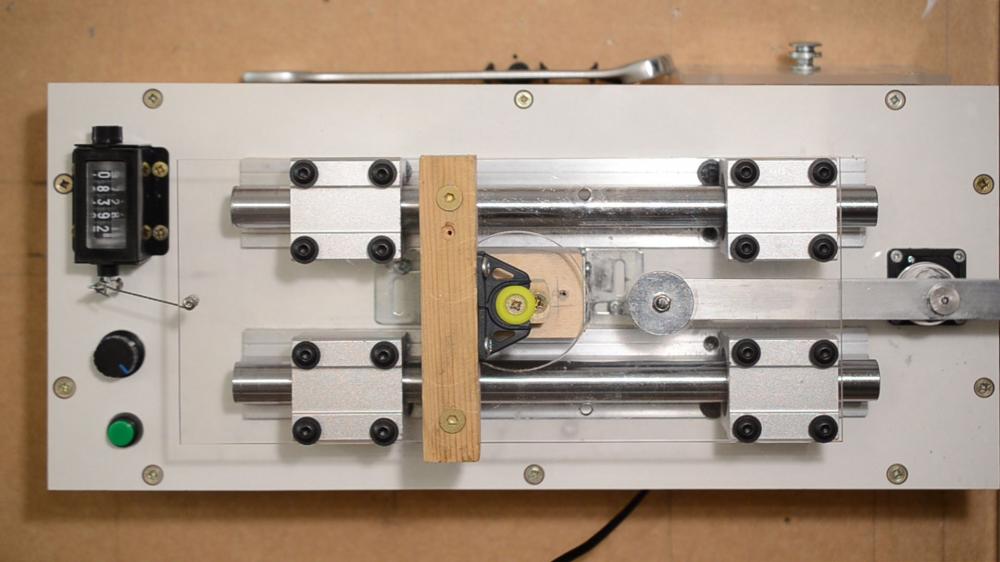

Fatigue testing Type 2 Button-fix. Watch the test machine in action!

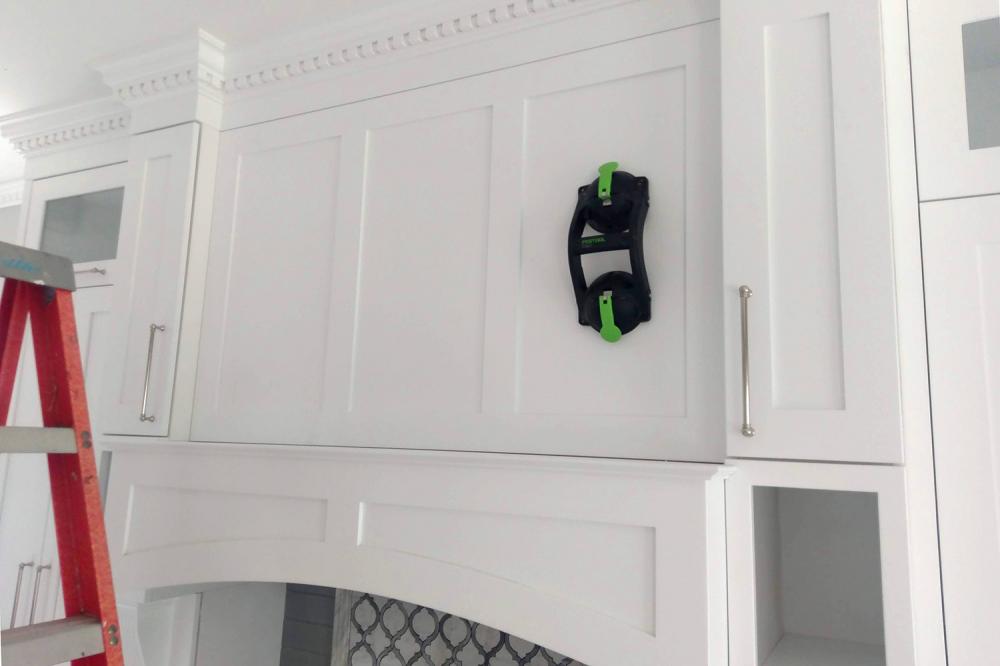

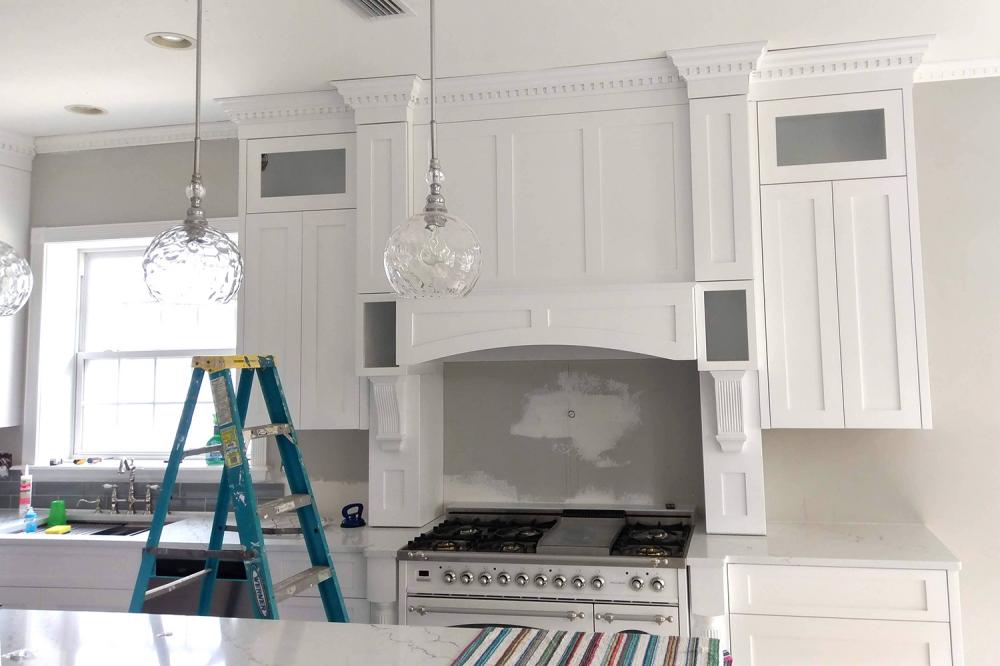

Kitchen cooker hood surround, removable for service access. Hurleys Craftworks Inc.
Kitchen cooker hood surround, removable for service access. Hurleys Craftworks Inc.
Kitchen cooker hood surround, removable for service access. Hurleys Craftworks Inc.
Kitchen cooker hood surround, removable for service access. Hurleys Craftworks Inc.

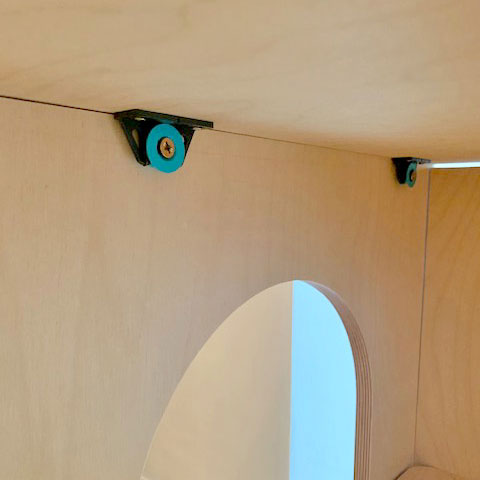

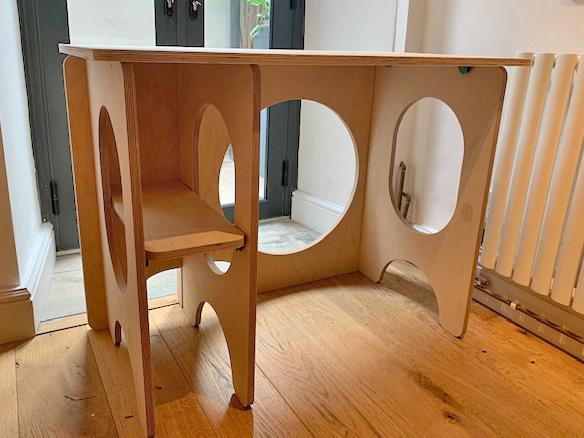

Slötdesk self-assembly home desk. Benjamin Thomas Design Limited
Slötdesk self-assembly home desk. Benjamin Thomas Design Limited
Slötdesk self-assembly home desk. Benjamin Thomas Design Limited
Slötdesk self-assembly home desk. Benjamin Thomas Design Limited

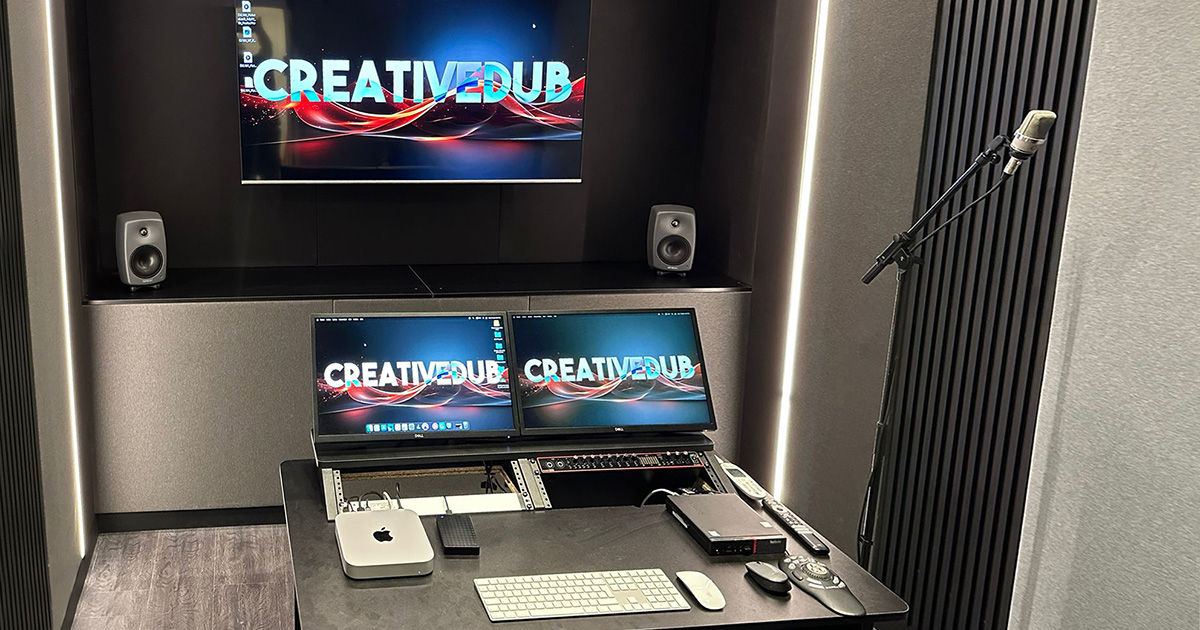

Creativedub recording studio. Studiofonic
Creativedub recording studio. Studiofonic
Creativedub recording studio. Studiofonic
Creativedub recording studio. Studiofonic

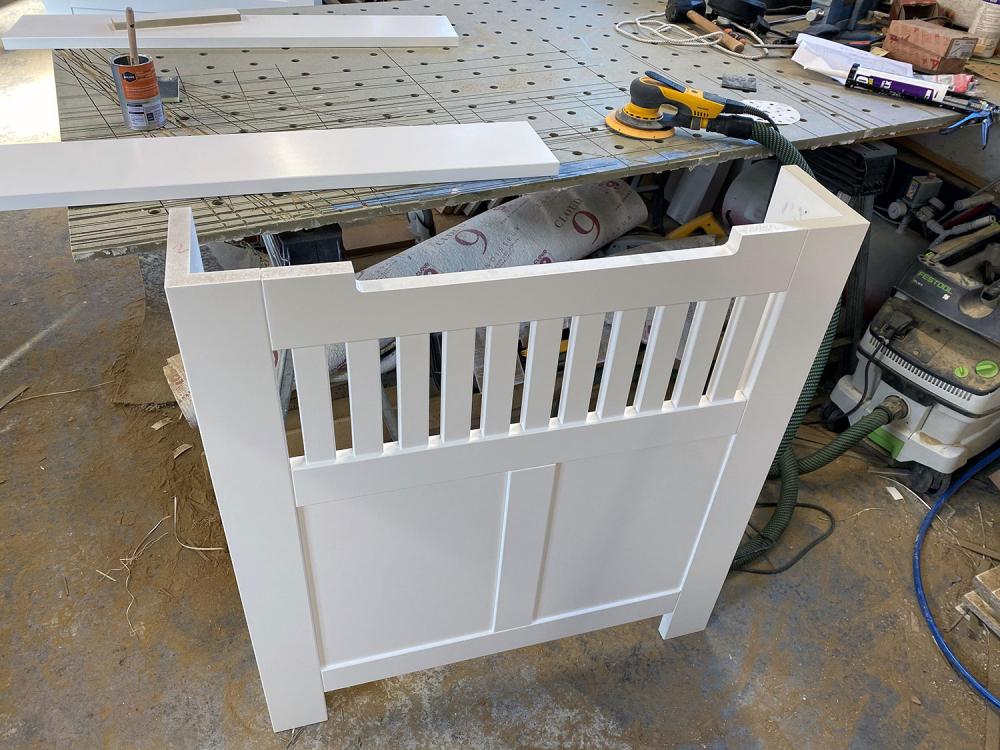

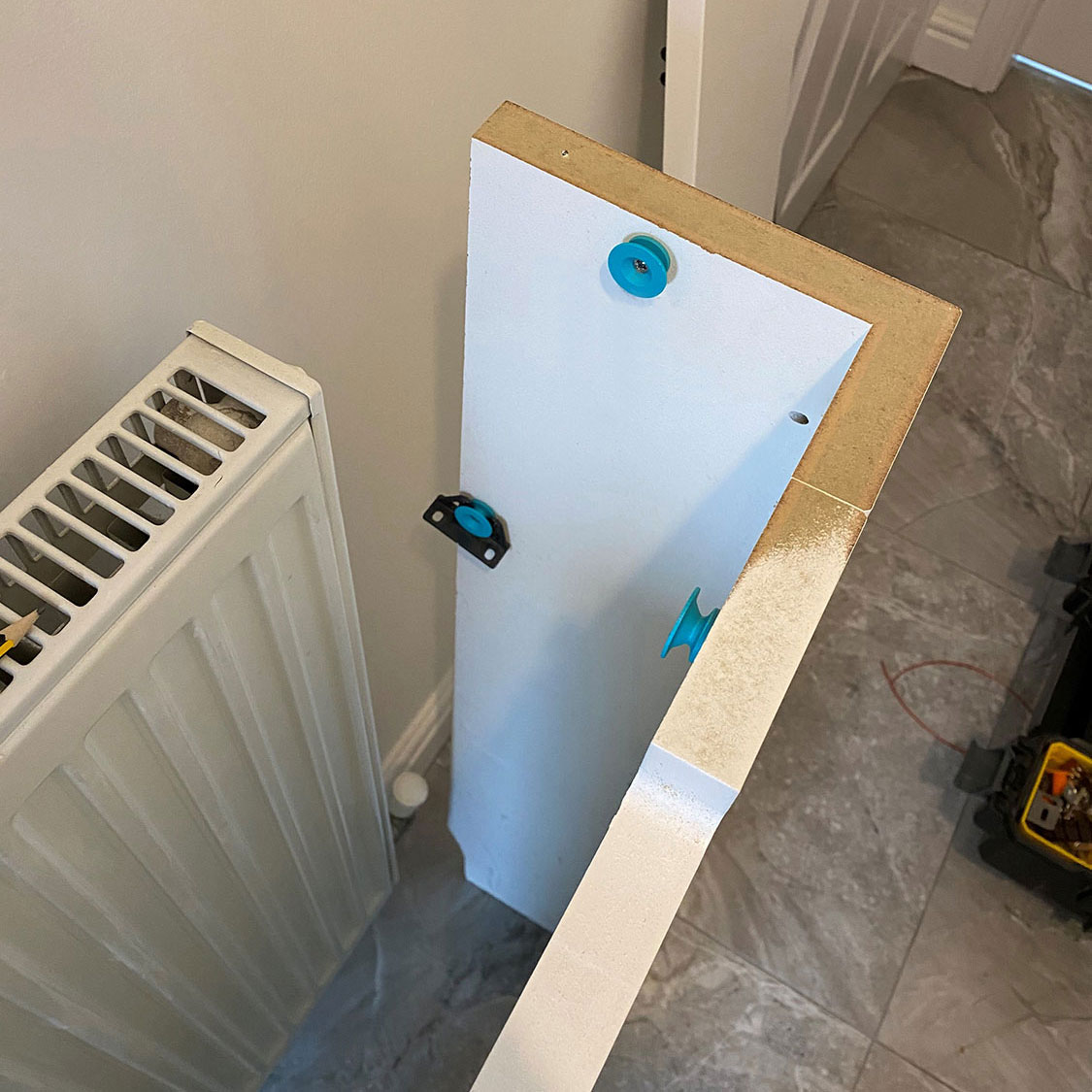

Bespoke radiator cabinets with easy service access. Surefit Fitted Furniture
Bespoke radiator cabinets with easy service access. Surefit Fitted Furniture
Bespoke radiator cabinets with easy service access. Surefit Fitted Furniture
Bespoke radiator cabinets with easy service access. Surefit Fitted Furniture

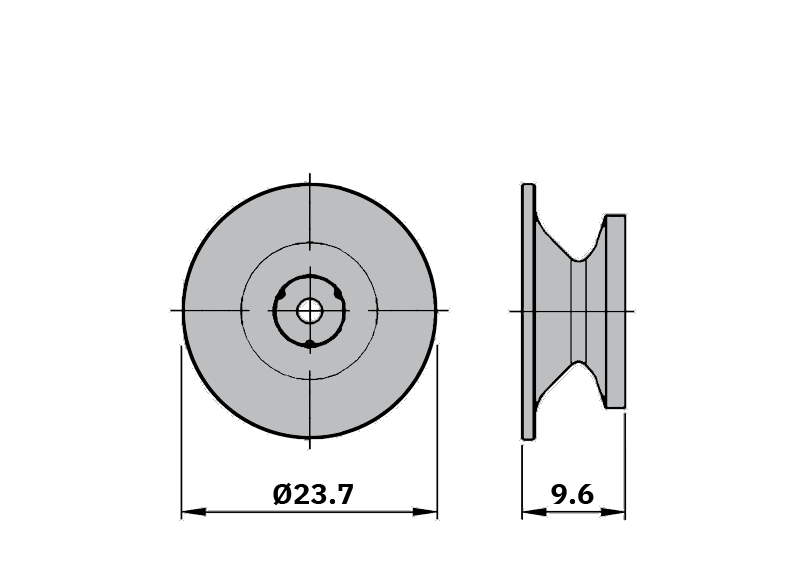

The blue Button makes alignment of the Type 2 assembly easy, thanks to its large lead-in flange. It also has a unique screw-retaining feature, to hold the screw during assembly. Use with Ø5mm CSK wood screws, M5 machine screws or Ø6.2mm Varianta Euro screws.

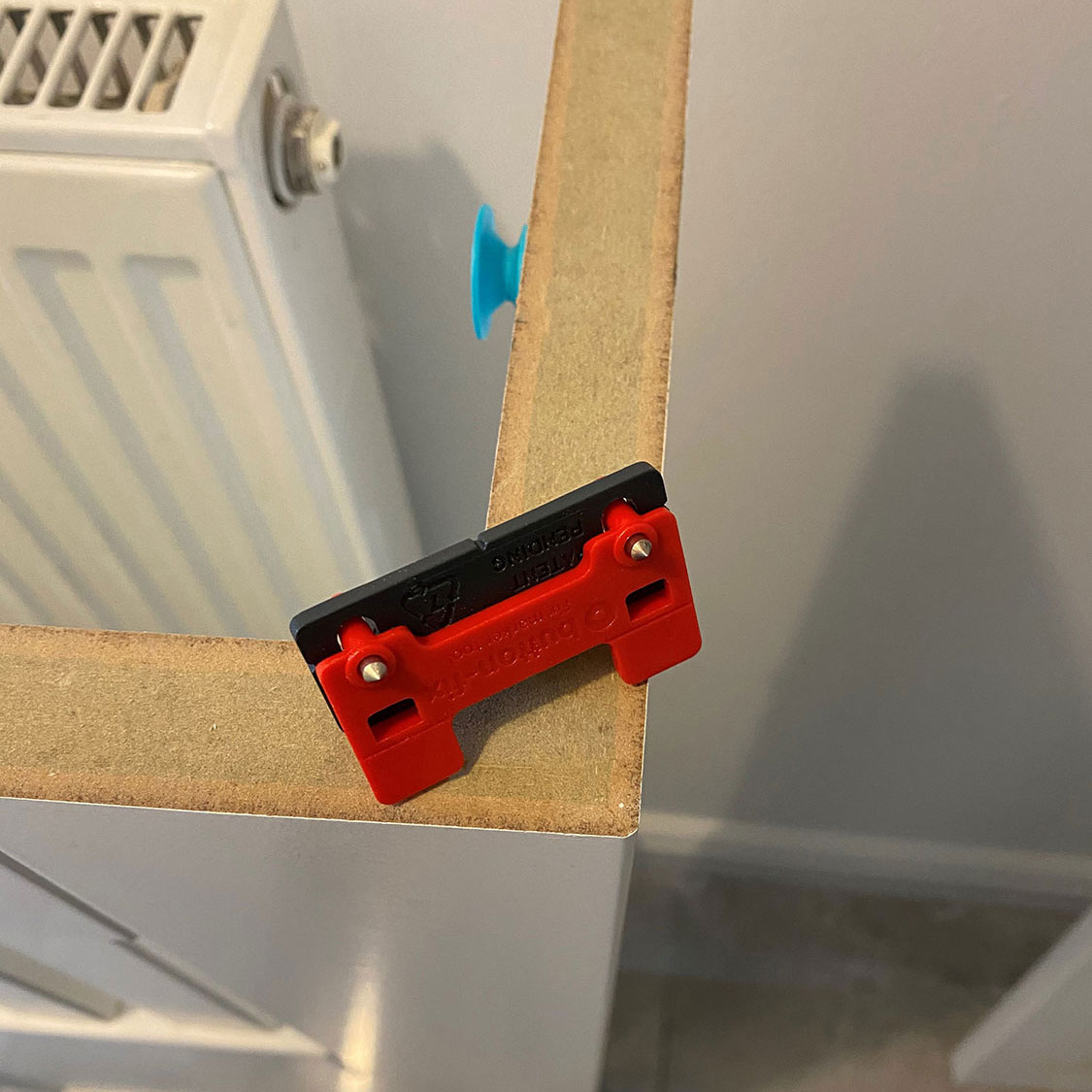

The Fix Marker for Type 2 helps to quickly and accurately align the Type 2 Button-fix installation, reducing the need for measuring and marking out. The marker points will leave indents on the surface of the removable panel, which can be used as pilot guides for the Fixes.
The Safety Cord should be used in all applications of Type 2 Button-fix where extra safety is required. On a vertical panel install two Safety Cords, one to each Fix in the top corners. An additional Button is required to capture the loop on the Safety Cord.
The Type 1 Button-fix connects parallel panels where the emphasis is on strength, and is recommended when the panels are carrying cantilevered loads such as shelving.
For hanging thin materials such as solid grade laminate, solid surface (Corian®, Hanex®, etc.), glass, metal or stone, Type 1 Bonded Button-fix is the best solution.
When constructing furniture, cladding reception desks or adding sides to kitchen cabinets, and panel-to-panel contact is required, Type 1 Flush is the recommended Button-fix.
Whether it is in transport environments, subject to vibration and shock loads, or for fire-rated ceiling panels, the Type 1 Metal Button-fix is the high-performance choice.
Like the original Type 2, they connect panels at 90° or to a frame. But their more compact installation depth allows the Button to be fitted to the edge of an aperture in an 18mm (3/4”) panel – ideal for a service access window.
The push-on/pull-off engagement of the Type 3 Button-fix couldn't be simpler, and is ideal when there is no clearance around the panel.
